Automatic Cutting Line

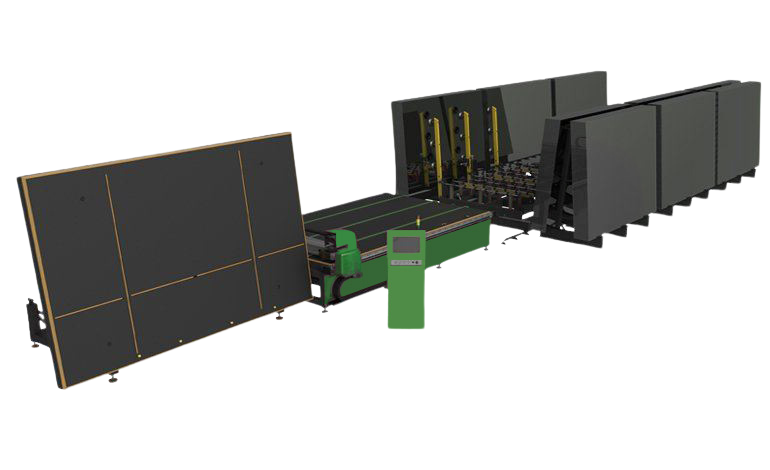

The Automatic Cutting Glass Cutting Line delivers precise straight and shape cutting of float glass using advanced diamond wheel technology. Complete with an automatic loading system and glass breakout table, it provides efficient, accurate performance from loading through cutting. The intelligent loading system automatically retrieves glass from racks on both sides of the line, while the CNC-controlled system optimizes cutting speeds and minimizes axis movement to reduce cutting and grinding times. Built with a durable, stable design, the line helps lower operating costs and maximize productivity. Each system can be configured to fit your production requirements and plant layout.
Processing Capabilities
Maximum Glass Size:- 146" x 100"
- 240" x 126"
- 319" x 130"
Glass Thickness Range: 3-19 mm
Operating Speed: 492 FPM
Cut Path Tolerance: ±0.20 mm
Features
Automatic Straight and Shape Glass Cutting
Automatic Glass Alignment
Automatic Speed and Pressure Adjustment: Automatically identifies glass type and applies the optimal cutting speed and pressure to deliver maximum productivity and superior cut quality.
Edge Deletion
Glass Optimization Software
Optional Features
Vinyl Film Cutting
Marking System: Automatically identify and label each cut glass piece for improved production tracking and workflow management.
