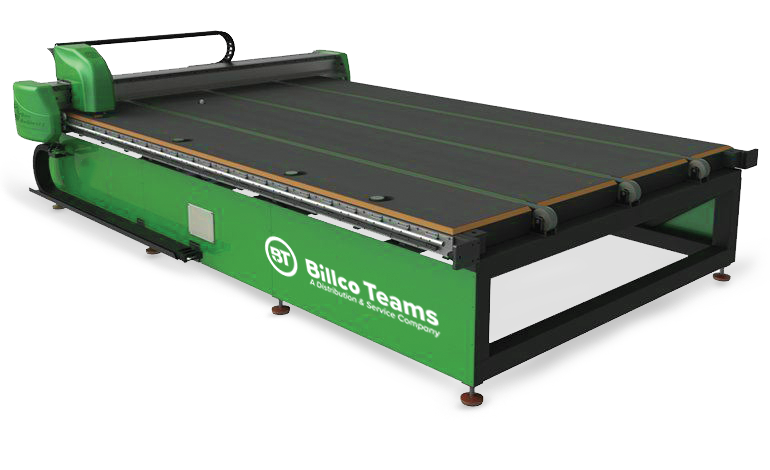

Automatic Cutting Table
The Automatic Cutting Table delivers fast, accurate cutting of both straight and shaped float glass. Designed for high-volume production, the CNC-controlled system automatically detects the glass position and optimizes cutting paths to maximize speed, accuracy, and efficiency. An optional Low-E edge deletion system removes soft Low-E coatings with exceptional precision prior to further processing.
Processing Capabilities
Maximum Glass Size:- 145" x 100"
- 240" x 126"
Glass Thickness Range: 3-19 mm
Operating Speed: 492 FPM
Cut Path Tolerance: ±0.20 mm
Features
Automatic Straight and Shape Glass Cutting
Automatic Glass Alignment
Automatic Speed and Pressure Adjustment: Automatically identifies glass type and applies the optimal cutting speed and pressure to deliver maximum productivity and superior cut quality.
Edge Deletion
Glass Optimization Software
Optional Features
Vinyl Film Cutting
Marking System: Automatically identify and label each cut glass piece for improved production tracking and workflow management.
