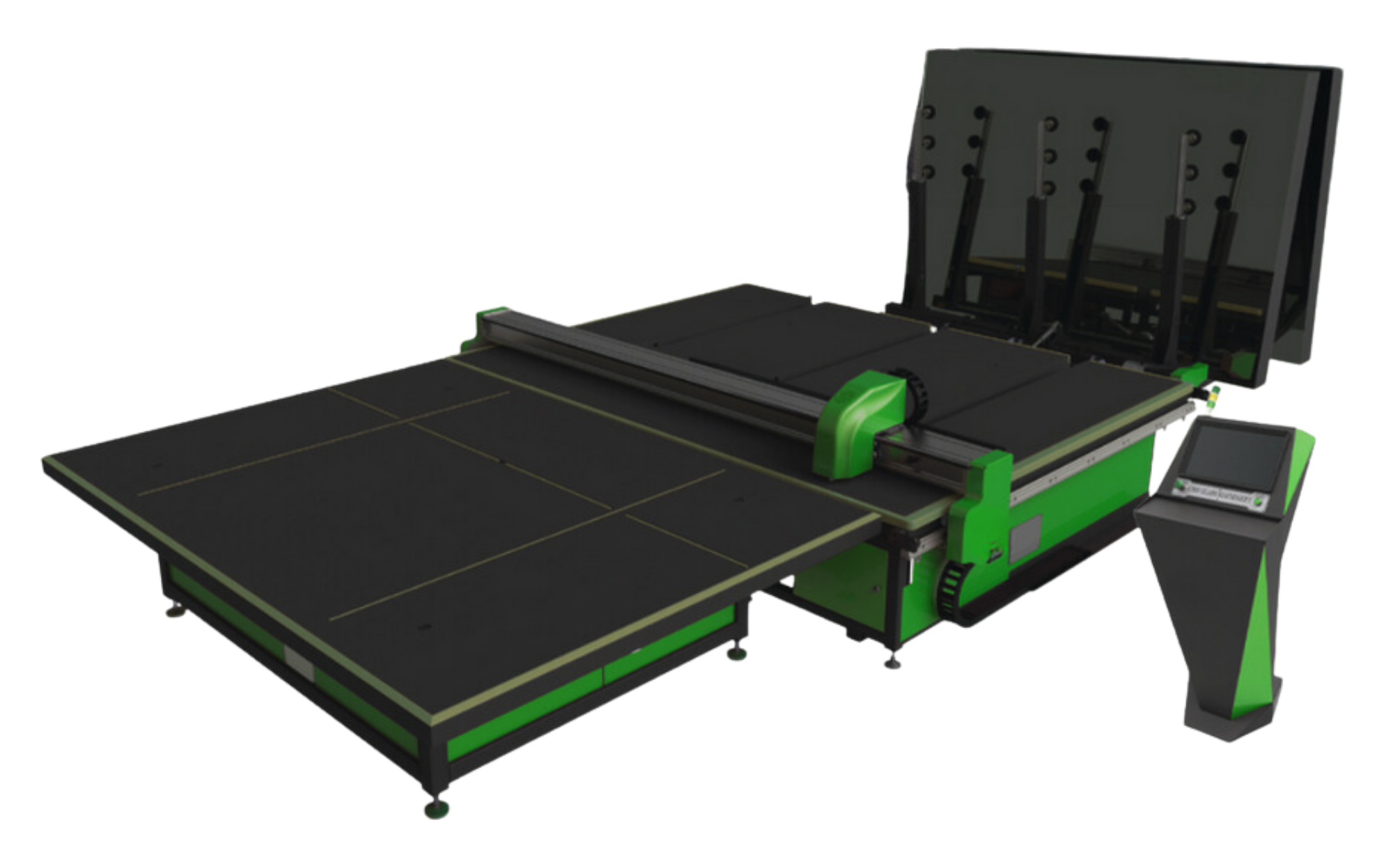

Automatic Cutting Table with Loading Arms
The Automatic Cutting Table with Loading Arms provides high-speed, automatic straight and shaped cutting of float glass using precision diamond wheel technology. Vacuum loading arms automatically load glass from the stock rack while preparing the next sheet during cutting to maximize productivity. An optional Low-E edge deletion system is available for soft-coated glass.
Processing Capabilities
Maximum Glass Size:- 145" x 100"
Glass Thickness Range: 3-19 mm
Operating Speed: 492 FPM
Cut Path Tolerance: ±0.20 mm
Features
Automatic Straight and Shape Glass Cutting
Automatic Glass Alignment
Automatic Speed and Pressure Adjustment: Automatically identifies glass type and applies the optimal cutting speed and pressure to deliver maximum productivity and superior cut quality.
Edge Deletion
Glass Optimization Software
Optional Features
Vinyl Film Cutting
Marking System: Automatically identify and label each cut glass piece for improved production tracking and workflow management.
