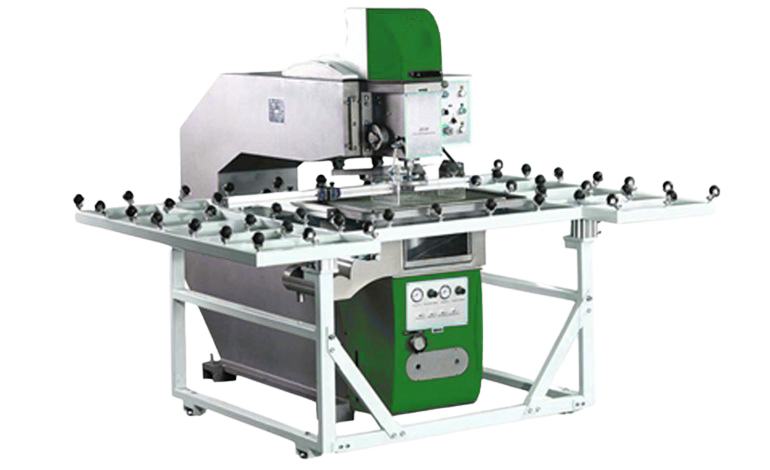

Horizontal Drilling Machine

The Horizontal Drilling Machine efficient hole drilling for a wide range of glass processing applications. Equipped with both upper and lower drilling heads, it produces clean, precise holes while minimizing chipping and ensuring consistent quality. Designed for ease of operation, the machine features pneumatic glass clamping for secure positioning, adjustable drilling speed and depth, and automatic lower drill movement for improved efficiency. The pneumatically controlled worktable moves vertically to accommodate various glass thicknesses, while the automatic feeding system supports continuous, high-volume production.

Processing Capabilities

Hole Diameter: 4—160 mm

Glass Thickness Range: 3-19 mm

Table Height: 33.5"

Features

Robust Structural Design

Space Saving Design
