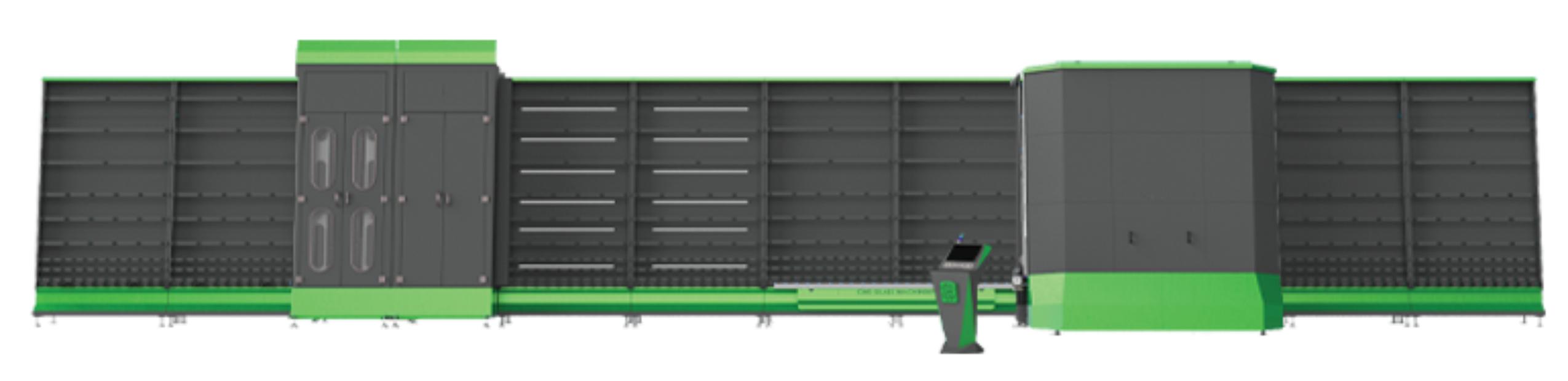

Vertical Insulated Glass Line

The Vertical Insulating Glass Line is an automated system designed to wash, assemble, and press double, triple, and structural insulating glass units, including step and facade glass. Soft Low-E brushes and a high efficiency drying system ensure clean glass prior to assembly. After washing, the first glass lite is held by vacuum suction cups while the second lite, fitted with a butyl applied spacer frame, is positioned using an air cushion system. The servo panel press automatically aligns and presses the glass with uniform pressure for consistent sealing quality. Controlled by a user-friendly PLC system, the line features automatic pressure adjustment, an energy efficient vacuum system, and a hydraulic tilting table for handling and sealing large insulating glass units.

See All Billco Teams Glass Insulating

Download Product Spec Sheet

Processing Capabilities

Maximum Glass Size:

118" x 130"

Minimum Size: 14" x 7"

Glass Thickness Range: 3-19 mm

Operating Speed: 49 FPM

Technical Specifications

6
Brushes

2.36"
IG Unit Thickness

Features

Adjustable Washing Speed

Low-Energy and Low-Sound Drying Cabinet

Sensitive Four Point Pressing

External Brush Housing: External brushes improve water circulation during washing while providing observation windows for easy process monitoring.

Water Tanks: The corrosion-resistant stainless steel water tank features automatic water level monitoring and integrated heaters to maintain the optimal water temperature for consistent washing performance.

Optional Features

Self-Cleaning Water Filter

Pre-Washing System: Removes dust and debris before the main wash cycle, improving cleaning performance and helping keep the washing system cleaner.

Tilting Table: Transfers glass between vertical and horizontal processes and can also be used for manual sealing of oversized insulating glass units.

Brush Speed Synchronization: Allows operators to adjust brush speeds through the control panel, providing enhanced washing performance for delicate Low-E coated glass.

Automatic Argon Gas Filling: Automatically calculates the required gas volume based on glass and spacer dimensions, ensuring accurate, efficient filling for every insulating glass unit.

Servo Press Front Panel: Automatically adjusts pressing pressure and cycle time based on glass size and thickness, delivering precise, consistent results.

Sand Filter: Removes dust and contaminants from the wash water, helping maintain cleaner water, improve washing performance, and reduce water consumption.
