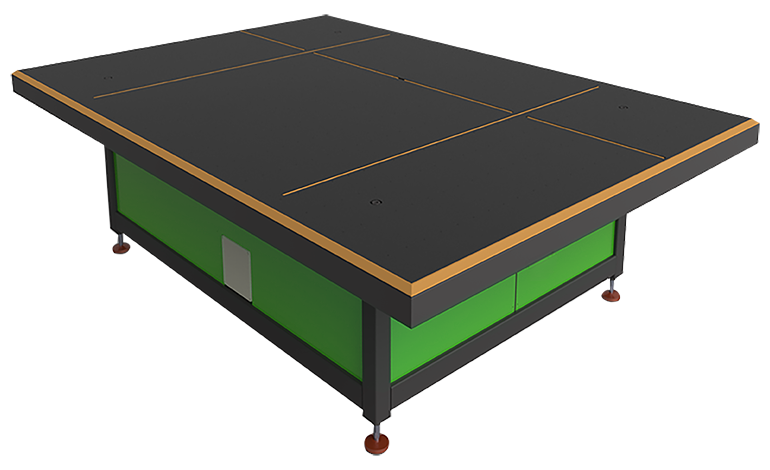

Breakout Table
The Fixed Glass Breaking Table is designed for safe and efficient manual breaking and separation of cut glass sheets. Pneumatic breaker bars in the X and Y directions are foot-pedal controlled for precise and convenient glass separation. An integrated air flotation system eliminates surface friction, allowing smooth glass movement across the felt-covered table while protecting the glass from damage. The high-flow, high-pressure fan system features a balanced, low-vibration structure and homogeneous air distribution tray for consistent and stable airflow. Two hydraulic cylinders provide fast and secure movement, while the high-pressure control and safety system ensures reliable and safe operation.
Processing Capabilities
Maximum Glass Size:- 145" x 100"
- 236" x 126"
Glass Thickness Range: 3-19 mm
Technical Specifications
2+1 or 3+1
Breaking Bars
1x3 kW or 2x3 kW
Blower
Features
Air Flotation System: Creates a cushion of air that reduces surface friction, allowing glass to move smoothly across the table while minimizing the risk of scratches.
Pneumatic Breaking Bars:Breaking bars in both the X and Y axes provide fast, accurate separation of cut glass for efficient manual processing.
High-Performance Fan System: A vibration-balanced, high-flow fan delivers consistent air pressure for reliable air flotation and smooth glass movement.
Uniform Air Distribution: An air distribution tray that provides even airflow across the entire surface, ensuring stable support and effortless glass handling.
Dual Hydraulic Cylinder System
