Ancient Foundations (3500 BCE-500 CE)
The earliest glass objects were man-made beads and vessels produced in ancient Mesopotamia and Egypt around 3500 BCE. Glass was regarded as a rare luxury item. At the time, there were no handling techniques, as the objects were all small enough to be carried in a single palm.
Flat glass first appeared around 50 BCE when Roman glassworkers discovered glass blowing. The blowpipe tool allowed glass to be inflated into a cast shape, scored while still hot, and flattened in an annealing oven. Romans began to create flat planes for windows in bathhouses and wealthy homes.
With this discovery came new handling requirements. Roman glaziers used long iron tongs, wooden paddles, and flat stone surfaces. The challenge was moving hot glass without deforming it and moving cooled glass without shattering it. Both problems remain central to glass handling for the next two thousand years.
Medieval Mastery (500-1700 CE)
During the medieval period, the most popular method of glass production was “crown glass”. This was the process of spinning an iron rod of molten glass until it spread into a flat circular disc. These discs varied greatly in size and thickness, being thin on the edges and thick in the center.
The discs were cut using a diamond tool or steel wheel and carried to be used for windows using padded wooden boards, leather-wrapped pincers, and simple suction devices made of damped leather or animal skin pressed firmly against the glass surface.
Industrial Scale (1700s-1850s)
The desire for grand shop-front windows and mirror-lined palaces pushed glassmakers beyond current operations. In 1687, French inventor Bernard Perrot developed casting by pouring molten glass onto a large, smooth copper table and flattening it with a water-cooled metal roller. The resulting plate was thick, heavy, and required extensive grinding and polishing, but it could measure up to 4 by 6.5 feet.
A large ground-glass plate could weigh hundreds of pounds. Moving it required teams of workers, wooden roller systems, and early forms of chain hoists. The Saint-Gobain factory in northern France developed some of the earliest industrial glass-handling infrastructure: iron-wheeled trolleys, padded timber cradles, and pulley systems for lifting finished plates.
The grinding and polishing process was an exercise in systematic handling. Plates were laid flat on large stone or iron tables and abraded with increasingly fine sand while workers poured water across the surface. Moving a plate from one grinding station to the next, without introducing scratches or edge chips, required the soft leather pads and smooth wooden boards that would remain standard shop-floor tools for another century.
Mechanization (1850s-1950s)
The industrial revolution transformed the scale and speed of flat glass production. The Fourcault process, developed in Belgium in 1902, and the Libbey-Owens process both continuously drew molten glass upward from a furnace slot as a vertical ribbon, which was then annealed and cut into sheets.
These continuous processes created the first true glass handling production lines. The vertical ribbon of glass, moving slowly upward at a controlled rate, had to be cut at regular intervals without disturbing the flow, a process called “capping”. Early capping was performed manually by workers walking alongside the ribbon with a hand cutter and a straightedge. The cut sheets were caught on padded wooden frames and leaned against wall-mounted storage racks.

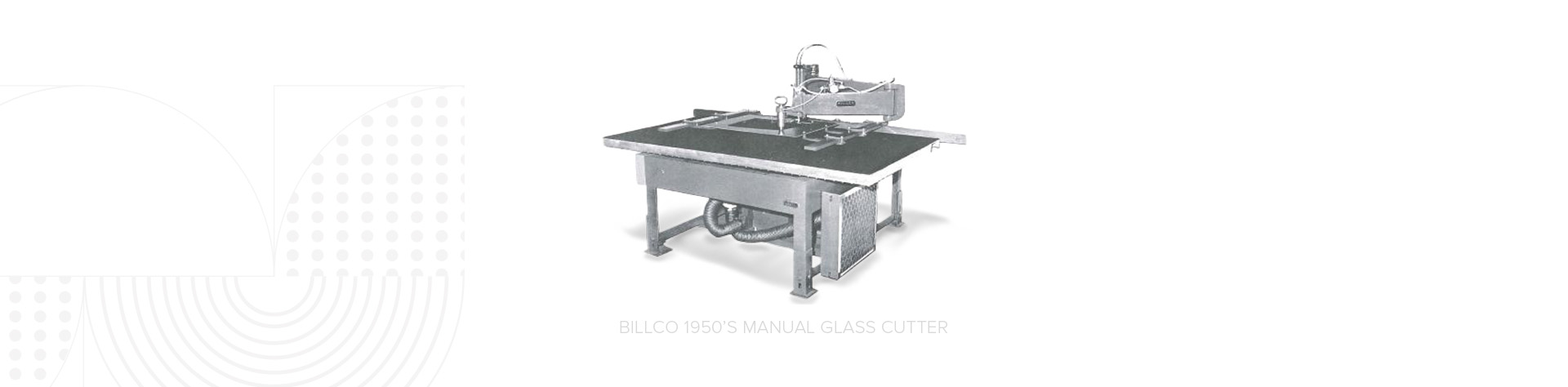

In the late 1940s, the first automated equipment for straight-line cutting of stock sheets became commercially available. Billco Manufacturing was among the builders of this early-cutting equipment. Before that, every cut made downstream of the manufacturing line was done on tilting or stationary tables with manual hand tools. This was slow, skill-dependent, and dangerous.

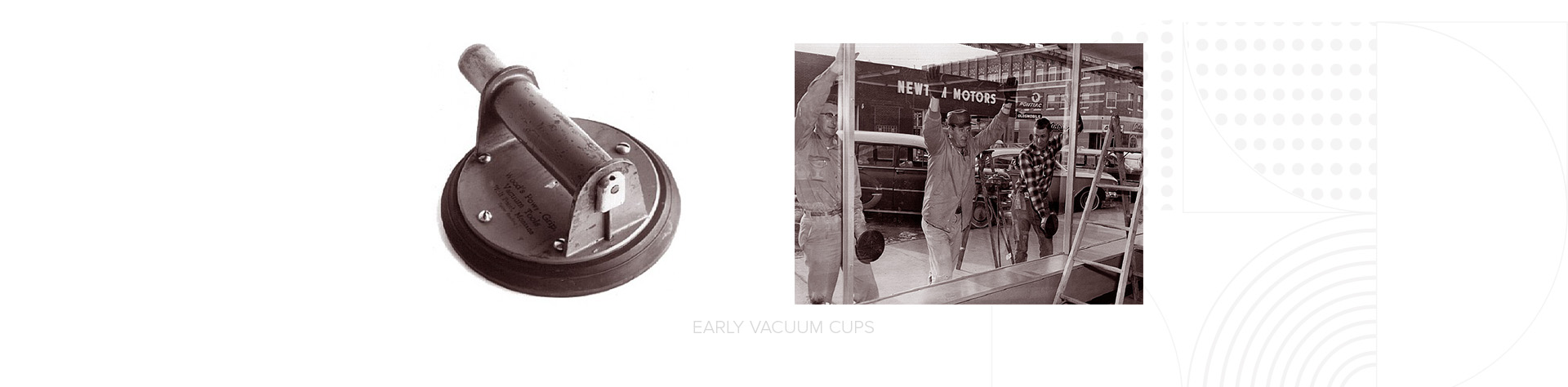

The suction cup as a practical glass handling tool, also gained wider industrial adoption in this era. Rubber vacuum cups, which could be pressed against a glass surface to create a manual grip without touching the edges, began appearing in glazier workshops in the early 20th century.
Float Process Revolution (1950s-1970s)
Developed at Pilkington Brothers in 1959, the float process involved pouring a continuous ribbon of molten glass onto a bath of molten tin. Because glass is less dense than tin, it floated on the surface, spreading into a sheet of perfectly uniform thickness with fire-polished faces on both sides.
The float process produced glass in a continuous horizontal ribbon, moving through an annealing lehr (a controlled-cooling oven) at line speeds measured in meters per minute. This fundamentally changed the handling problem. Glass was no longer a series of discrete sheets to be moved by hand. It was a continuous material flow that had to be managed, scored, broken, sorted, and stacked at production speed.
Roller conveyors became the backbone of float glass handling. Driven rollers moved the glass ribbon and cut sheets through every stage of the process, from the exit of the tin bath through the annealing lehr, the cutting lines, sorting stations, and into storage. The rollers’ hardness, surface texture, temperature resistance, and spacing became a specialized engineering discipline. A roller that was too hard would mark the soft glass surface; too soft, and it would deform under load; too far apart, and thin glass would sag and break between supports.
Vacuum Technology (1960s-1990s)
As glass production increased, so did sheet sizes. A jumbo float glass sheet, typically 10.5 feet wide and up to 20 feet long, weighed several hundred pounds. Moving large sheets without mechanical assistance was impossible, and the human-scale tools of earlier eras were simply not fit for purpose.
Vacuum lifting technology evolved during this period into the foundation for industrial glass handling. The principle was the same as the glazier’s hand-held rubber cup, but scaled up and made reliable for continuous industrial use. Engineered vacuum lifters used arrays of suction cups connected to a powered vacuum pump, with the whole assembly suspended from an overhead crane or forklift attachment. A sheet of glass could be lifted, moved horizontally, tilted, and placed onto a storage rack; all without any mechanical contact with the glass edges or surfaces, which could cause chips, cracks, or marking.
Storage and transport handling also evolved significantly. The A-frame rack, in which glass sheets lean at a slight angle against padded steel or timber supports, became the universal standard for storing and shipping flat glass. Wheeled A-frame stillages allowed sheets to be moved within a warehouse without being individually lifted.
Specialty Glass Challenges (1970s-2000s)
The post-float era saw a rapid increase of specialty glass, such as tempered, laminated, coated, and low-E glass. Each required tailored handling techniques, including adapted suction cups and heightened care during processing and transport.
Automated Handling (1980s-2000s)
Computer control of glass processing lines during the 1980s and 1990s fundamentally changed the relationship between glass handling and production optimization. Optimized cutting patterns often produced fragments of varying sizes in a non-sequential order, which meant that the sorting, labeling, and routing of cut pieces to the correct processing stations became a logistics problem.
Air flotation tables, large flat surfaces perforated with thousands of small holes through which compressed air was pumped, became important handling tools in computer-controlled cutting rooms. By creating a thin cushion of air between the glass and the table surface, these systems allowed large sheets to be slid and repositioned with minimal force and essentially no friction, eliminating the scratching and marking that would result from dragging glass across a hard surface.
Modern Handling (2000s-Present)
The 21st century has seen the progressive replacement of human glass handlers with robotic systems. The drivers have been consistent: safety, precision, speed, and the inexorable growth of glass panel sizes.

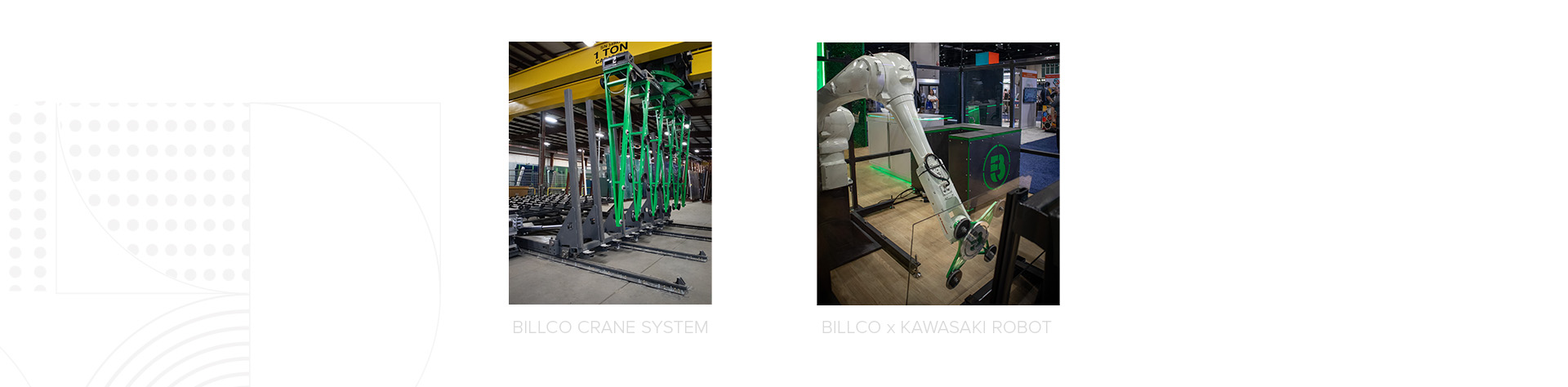

Crane-based loading systems became a central node in the automated fabrication facility, retrieving individual jumbo sheets from storage and presenting them to the cutting table without operator intervention. In 2002, Billco’s crane loading system was benchmarked as the fastest in the world for this function, and it introduced another industry first: an interactive touchscreen interface for system control. At a time when most handling equipment was operated through pushbutton panels and rotary switches, the touchscreen gave operators a graphical interface for managing glass inventory, directing crane movement, and monitoring system status.
Robotic arms, such as the Billco x Kawasaki Robotic Arm, fitted with large vacuum cups, now handle jumbo sheets through every stage of the process. A modern robotic glass handler can pick a sheet weighing several hundred pounds from a storage rack, present it to a cutting line at precisely the correct position and orientation, remove the cut pieces, and stack them onto outbound racks, all without human intervention.
Vision systems using high-resolution cameras and laser profilometry inspect each sheet in motion, detect surface defects, measure dimensions, and feed data to quality control systems in real time.
Conclusion
The history of flat glass handling is, in many ways, the history of flat glass itself. Every major advance in glass production brought with it a new set of handling requirements and urged the development of new handling tools and methods.
As architectural ambitions continue to push toward ever-larger glass facades, and as the automotive and electronics industries demand ever-thinner and more precisely processed glass, the challenge of handling will continue to evolve. The robots and laser systems of today are likely to seem as primitive to future glass handlers as the medieval glazier’s dampened leather suction pad seems to us.
SHOP HANDLING SOLUTIONS
Resources
Savaëte, B. J. “The World of the Flat-Glass Industry.” Encyclopedia of Glass Science, Technology, History, and Culture. Wiley Online Library, 2021. https://onlinelibrary.wiley.com/doi/abs/10.1002/9781118801017.ch9.6
Nascimento, M. L. F. “Brief History of the Flat Glass Patent – Sixty Years of the Float Process.” ScienceDirect, 2014. https://www.sciencedirect.com/science/article/abs/pii/S0172219014000507
Wood’s Powr-Grip Co. “Lifter Types and Company History.” https://www.wpg.com/lifter-types
“History of Glass.” https://www.historyofglass.com/
Eurotech Vacuum Technologies. “The Benefits of an Automatic Loading System for Flat Glass.” 2023. https://eurotech-vacuum-technologies.com
“History and Manufacturing of Glass.” Scientific & Academic Publishing, 2017. http://article.sapub.org/10.5923.j.materials.20170701.03.html
